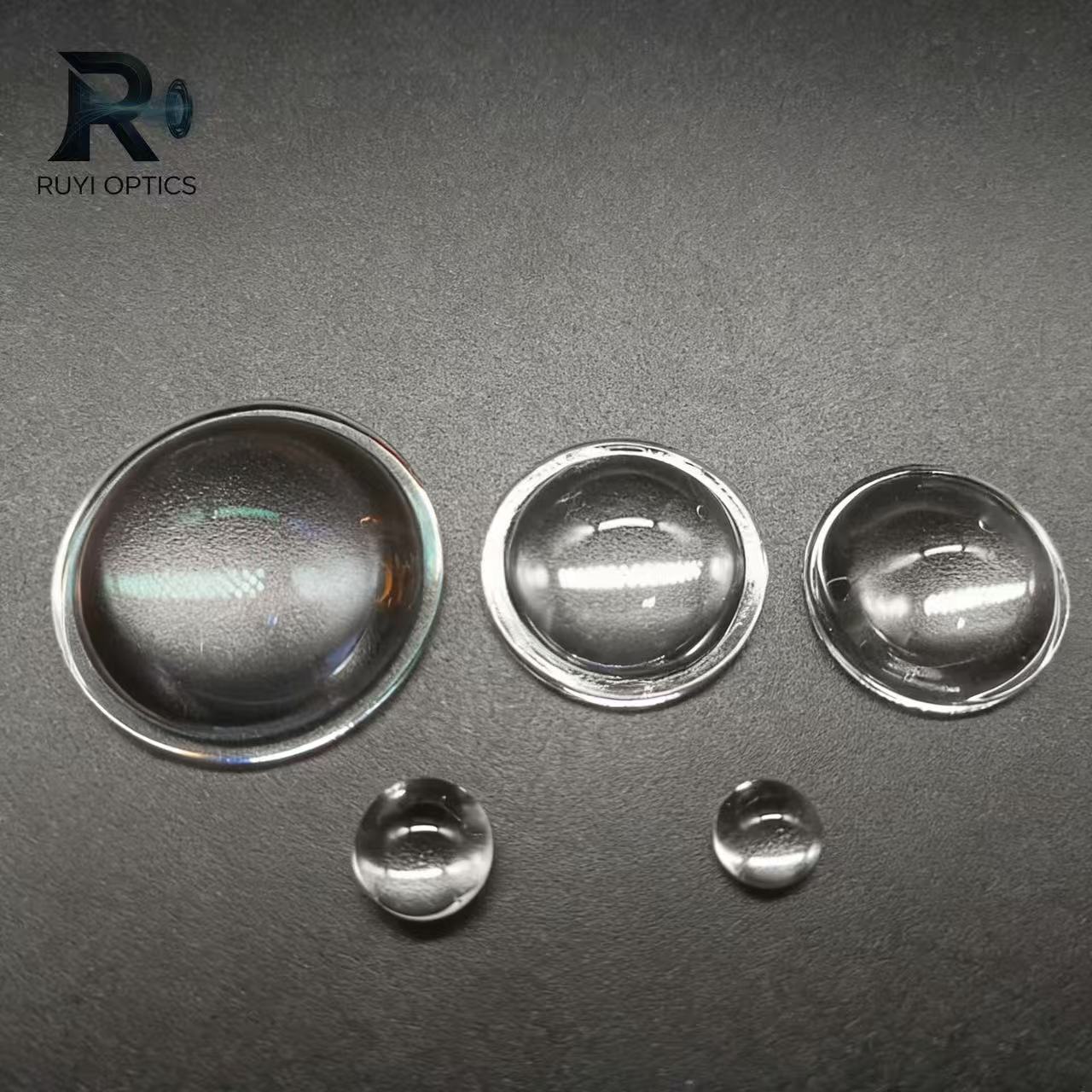

Illumination Grade Aspherized Lenses – Uniform Light Distribution for Lighting & Projection
Description:
Illumination Grade Aspherized Lenses are optimized for light collection, collimation, and uniform distribution in lighting and projection systems. Their aspheric surface design minimizes light loss and ensures even illumination across the target area, making them ideal for LED lighting, projectors, and automotive headlamps.
Materials:
Optical glass (BK7, borosilicate)
High-temperature resistant materials for high-power LEDs
Key Specifications:
Diameter: 5mm – 100mm
Focal Length: Customizable for specific beam angles
Surface Quality: 60/40 (commercial), 40/20 (precision)
Surface Accuracy: λ/4 @ 633nm (standard)
Coating Options:
AR coating (to maximize light transmission)
Anti-reflective coatings for specific wavelength bands
No coating (for cost-sensitive applications)
Applications:
LED lighting & stage lighting
Projectors & digital projection systems
Automotive headlamps & signal lights
Backlighting for displays Industrial machine vision lighting
Customization:
Custom beam angles, aspheric profiles, materials, and coatings are available. We can design lenses to match your specific light source and illumination requirements.
