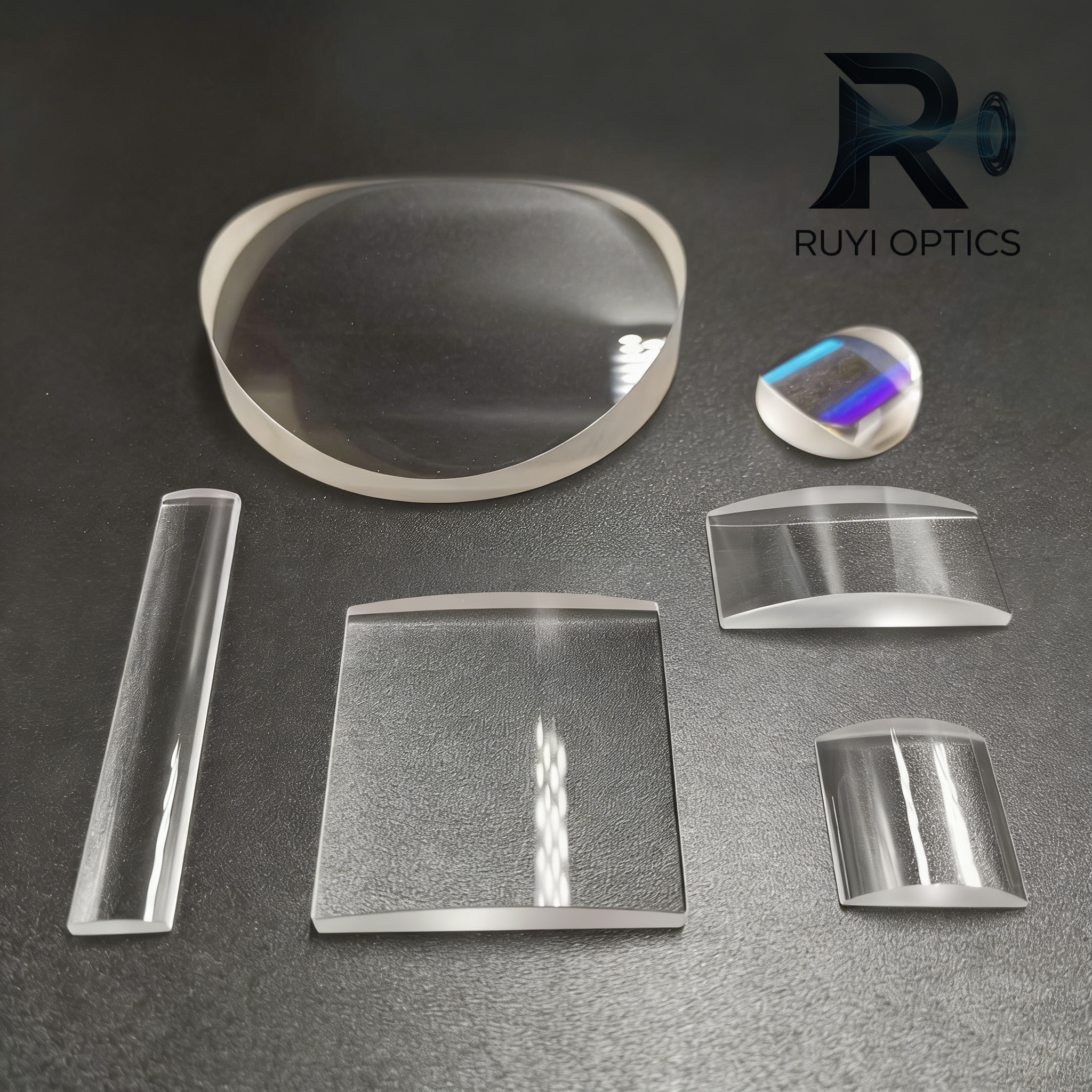

Plano Convex Cylindrical Lenses – Uniaxial Line Focusing
Detailed Description:
Plano Convex Cylindrical Lenses feature one flat (plano) surface and one convex cylindrical surface, focusing collimated light into a linear focal line along the curved axis. They are ideal for laser line generation, beam collimation, and one-dimensional light manipulation.
Key Specifications:
- Materials: BK7, Fused Silica, Sapphire
- Size: 2mm × 2mm – 150mm × 150mm
- Focal Length: Customizable from 5mm – 5000mm
- Surface Quality: 60/40, 40/20, 20/10
- Surface Accuracy: λ/4 @ 633nm
- Coating: AR coating (UV/VIS/NIR), BBAR coating
- Parallelism: ≤ 1 arcmin
Applications:
Laser line generators, barcode scanners, machine vision, spectroscopy, laser diode collimation.
