Cylindrical Mirrors – Uniaxial Focusing & Beam Shaping for Laser Systems
Description:

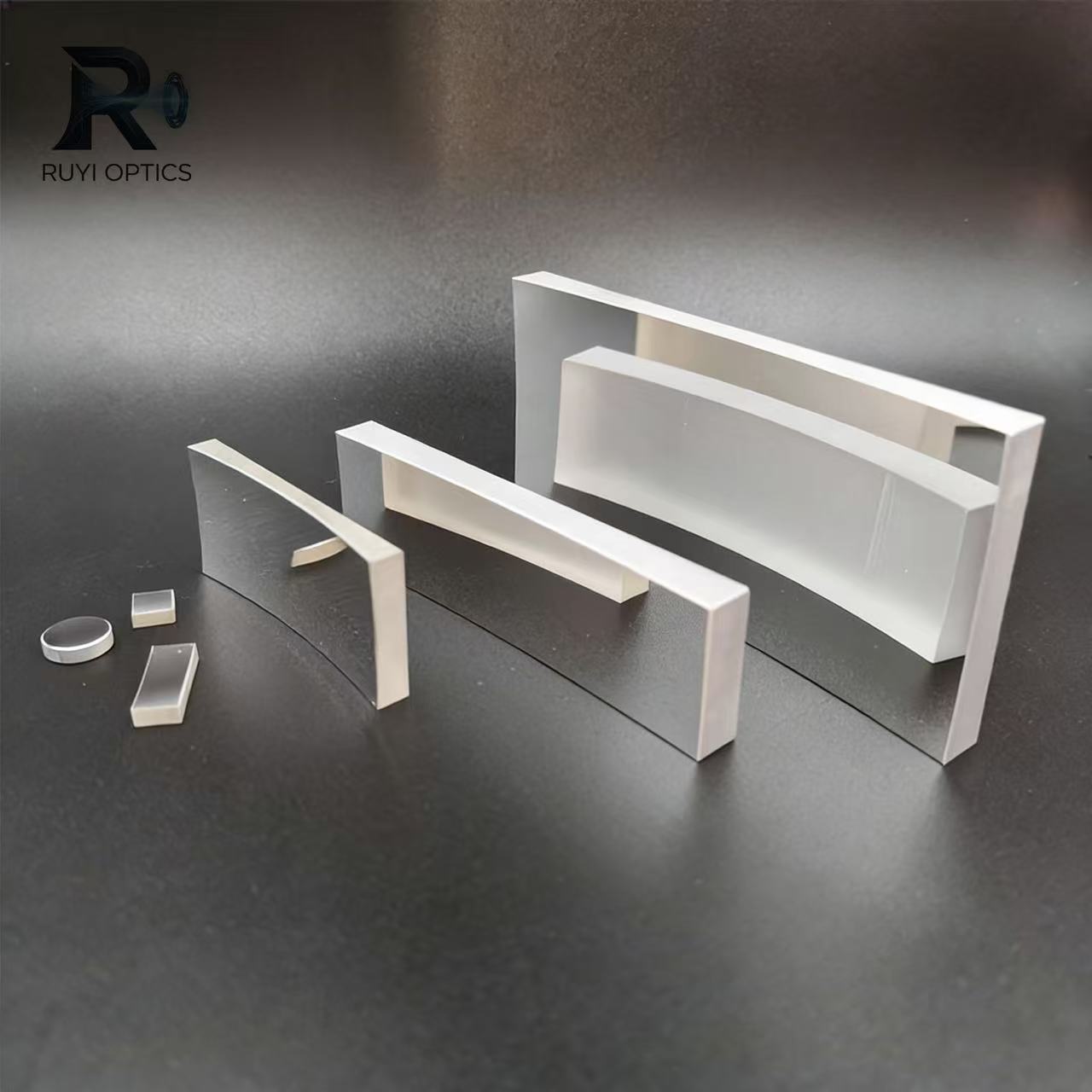

Cylindrical Mirrors have a cylindrical reflective surface, which focuses or diverges light along a single axis while leaving orthogonal rays unaffected. This uniaxial behavior makes them ideal for laser line generation, beam shaping, and optical scanning applications where one-dimensional control of light propagation is required.
Materials:
BK7: Standard optical glass for VIS-NIR applications
Fused Silica: High UV transmittance and laser damage resistance for UV and high-power lasers
Borosilicate Glass: Cost-effective option for industrial applications
Key Features:
Uniaxial focusing/divergence without astigmatism
High reflectivity across target wavelength bands
Low scatter and high surface accuracy
Custom focal length and curvature radius
Compatibility with high-power laser coatings
Key Specifications:
Size (Length × Width): 5mm × 5mm – 200mm × 200mm
Radius of Curvature: Customizable from 10mm to 5000mm
Surface Quality: 40/20, 20/10, 10/5
Surface Figure: λ/4 @ 633nm, λ/10 @ 633nm
Coating Options:
Protected Al (UV-VIS-NIR)
Protected Ag (VIS-NIR)
Protected Au (NIR-MIR)
Dielectric HR coating (custom wavelength high reflectivity)
Applications:
Laser line generators & laser scanners
Machine vision & barcode scanning systems
Spectroscopy & optical metrology tools
Laser processing & material handling systems
Medical laser devices & biomedical imaging
Custom service:
Custom size, curvature, coating, and edge treatment options are available. We can also produce cylindrical mirrors with asymmetric curvature for specialized beam shaping requirements.
