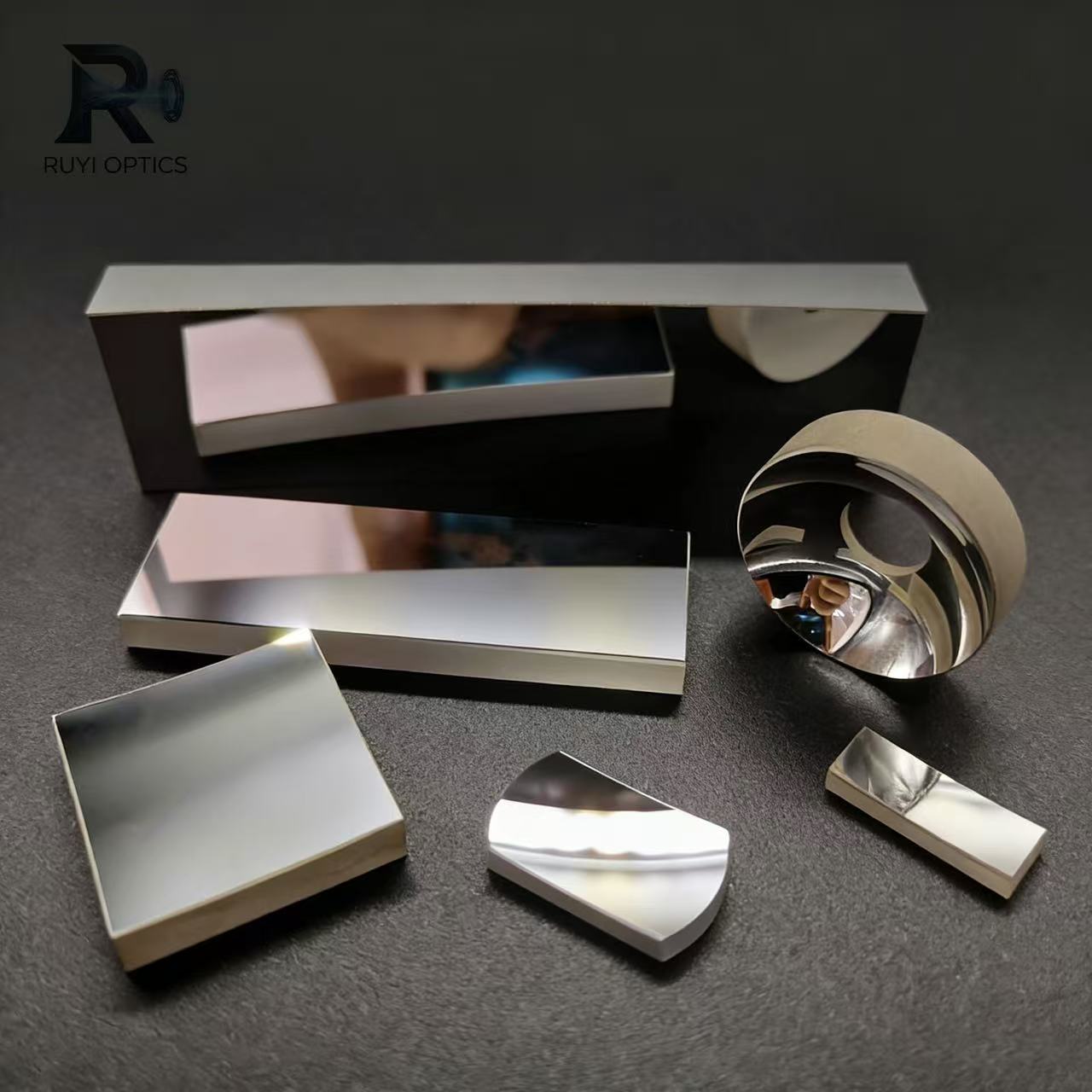

Silver Mirrors – High Reflectivity in Visible & Near-Infrared Spectra
Description:
Silver Mirrors are protected metallic mirrors with a silver reflective layer, which offers higher reflectivity (>95%) in the visible (VIS) and near-infrared (NIR) spectrum compared to aluminum mirrors. A protective dielectric overcoat (SiO₂ or Al₂O₃) is applied to prevent tarnishing and improve mechanical durability, making them suitable for a wide range of reflective optical applications.
Materials:
BK7 / Borosilicate Glass: Cost-effective substrates for general imaging and lighting applications
Fused Silica: High thermal stability and laser damage resistance for laser systems
Key Features:
High reflectivity (>95%) in 400nm – 2000nm range
Protective overcoat to prevent tarnishing and scratching
Good thermal stability and low scatter
Cost-effective alternative to dielectric mirrors
Compatibility with a wide range of optical systems
Key Specifications:
Diameter: 10mm – 300mm
Surface Quality: 60/40, 40/20, 20/10
Surface Figure: λ/4 @ 633nm, λ/10 @ 633nm
Reflectivity: >95% at 550nm – 2000nm
Coating: Protected silver (Ag + SiO₂/Al₂O₃ overcoat)
Applications:
Reflective telescopes & astronomical instruments Imaging systems & camera lenses Laser instruments & optical metrology tools Stage lighting & projection systems Medical devices & biomedical imaging Customization: We offer custom size, substrate, and edge treatment options. We can also produce silver mirrors with custom mounting features (holes, slots, bevels) for easy integration into optical assemblies.
